90 Degree Threaded Outlets

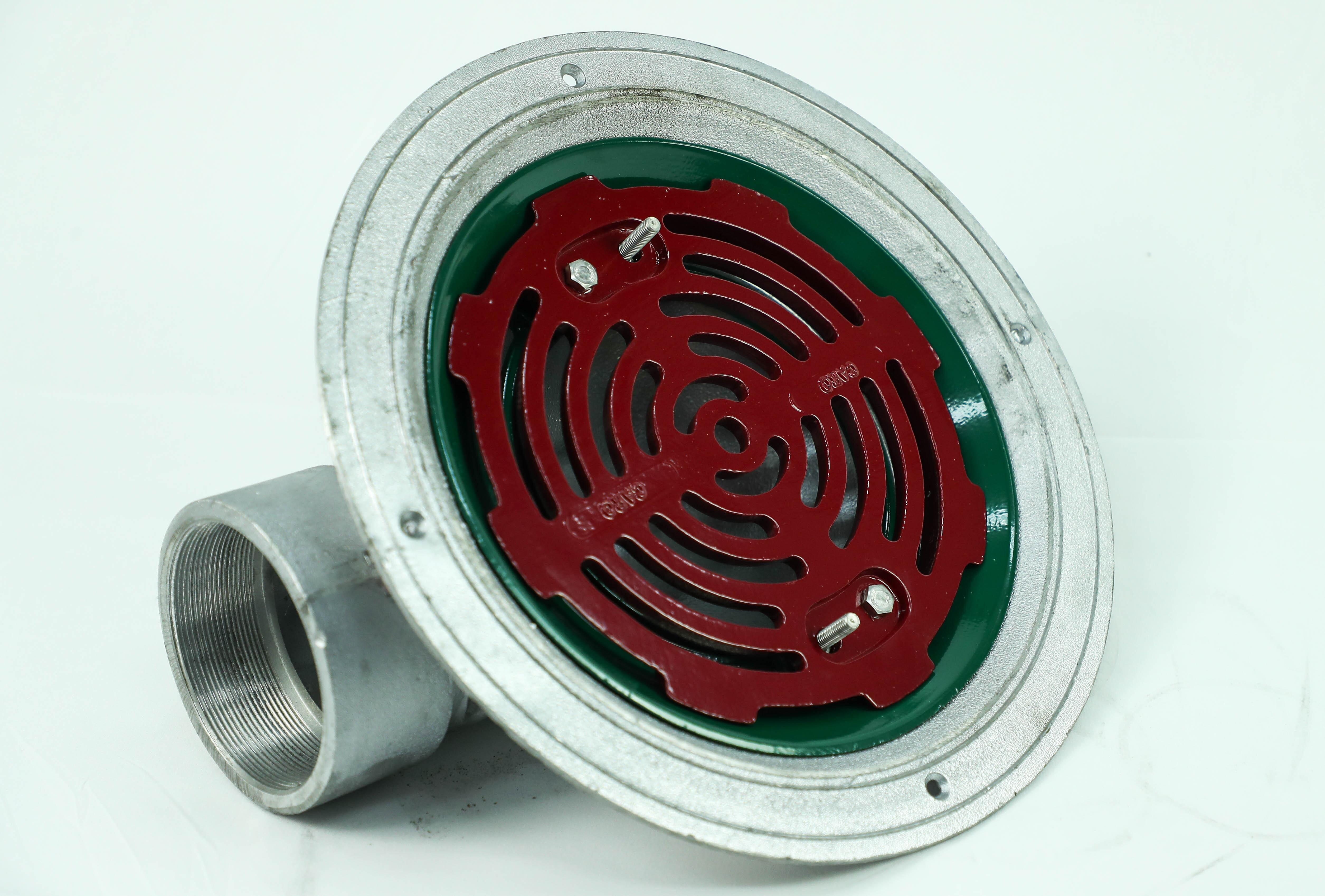

Caroflow 90-degree Threaded outlets are available in four sizes; 50mm, 75mm, 100mm and 150mm. Each threaded outlet comes with a body (with thread), clamping ring and grating assembly (domical or flat).

The Caroflow 90-degree Threaded is manufactured in LM6 Aluminium Silicon casting alloy to BS EN 1706:2010 for most roof finishes as standard or in leaded gunmetal to BS EN 1982:2008 for use with lead or copper-clad roofs or for connection to copper pipework. They are female parallel threaded to BS21:1985.

Caroflow 90-degree Threaded outlets are suitable for connection to, Screw Threaded Steel, Copper (Gunmetal only), PVC, Aluminium and Cast Iron. The PVC, Aluminium and Cast Iron connections are all suitable with the Caroflow Threaded Adaptor. The standard length of our Threaded Adaptor is 300mm, although other lengths can be produced to order.
