Firesol Non-Combustible Pedestals for Paving & Decking

Manufactured from galvanised steel and aluminium, this new addition to the Caro range of Paving Supports and Adjustable Paving and Decking Support systems allows full compliance to the European Classification for the A1 (Non-Combustible) Rating.

Now available in six different heights and when utilised with the relevant support plate, can offer great flexibility and continuous height variations from as low as 35mm up to 220mm high.

ADVANTAGES

• Non-flammable
• High load capacity
• Modular

SUPPORT PLATE FOR PAVING

The FS C3/4T support plate – manufactured in Aluminium, keeps a constant 3mm gap between paving / tiles. Upstands can also be easily clipped for use in stretcher bond format.

THREADED ADJUSTER

Available in six different height variations providing infinite height tuning between 35mm-220mm, so as to achieve the perfect flat surface.

LOCKING BOLT

Hexagonal locking bolt is used for fixing pedestal at desired height and for added stability.

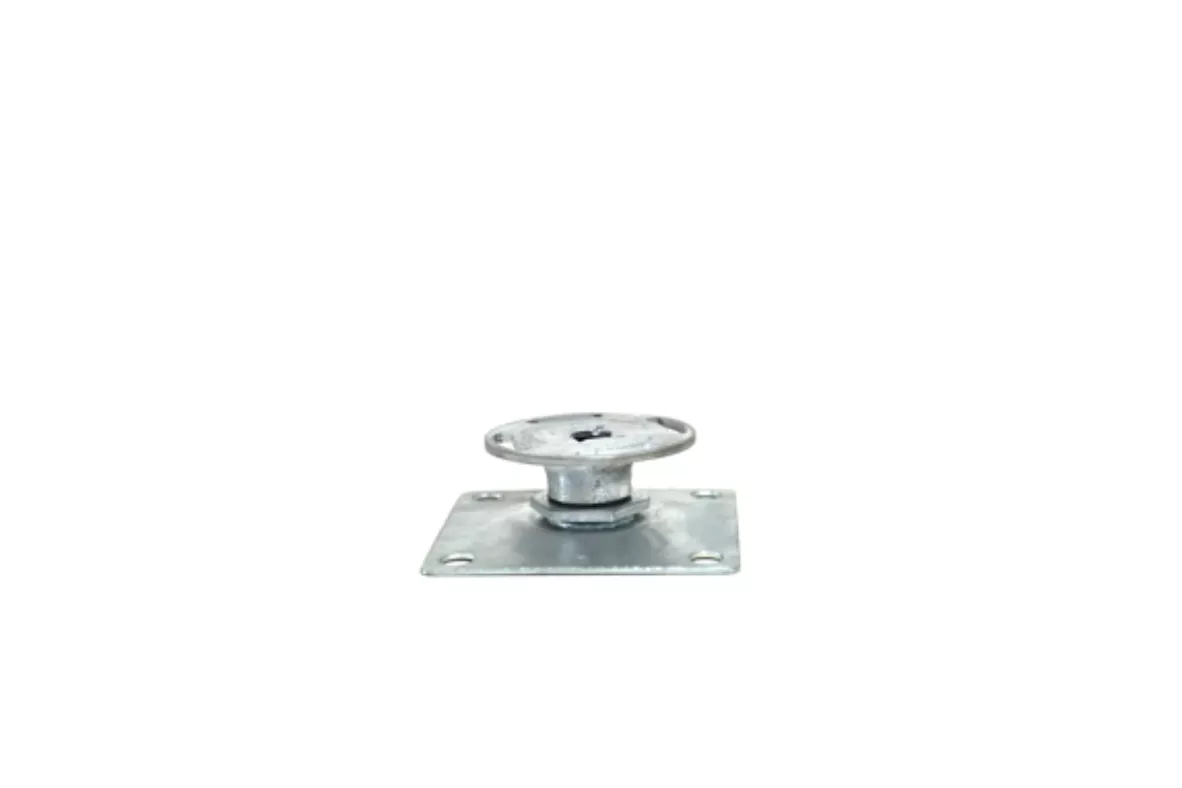

PEDESTAL BASE

100 x 100mm square pedestal base allows ample flat supporting surface to spread the load and protect waterproofing membrane, but small enough to pave up to edges and corners without overhang.
