Vertical Spigot Outlets
Caroflow Vertical Spigot outlets are available in four sizes; 50mm, 75mm, 100mm and 150mm. Each spigot outlet comes with a body, clamping ring and grating assembly (domical or flat).
Roof Drainage
With over 35 years experience of in supplying and designing Roof and Floor Drainage products, Caroflow has a range of products to fulfill your needs. In-house, UK-based, manufacturing ensures supplies are always available for immediate dispatch at prices that are hard to beat. Full design and fabrication capabilities provide an immediate solution to all detailed requirements. Quality Assurance to ISO 9001:2015
Caroflow Roof Drainage outlets ensure a watertight connection between the water/damp proofing membranes and the drainage pipe work.
All Caroflow roof drainage products have a fire classification rating of A2-s1, d0. For further information regarding the Fire Classification of our products, please click here
SUB CATEGORIES
Vertical Threaded Outlets
Caroflow Vertical Threaded outlets are available in four sizes; 50mm, 75mm, 100mm and 150mm. Each threaded outlet comes with a body (with thread), clamping ring and grating assembly (domical or flat). The outlets are female threaded to BS21:1985.
45 Degree Spigot Outlets
Caroflow 45-degree Spigot outlets are available in three sizes; 50mm, 75mm and 100mm. Each spigot outlet comes with a body, clamping ring and grating assembly (domical or flat).
45 Degree Threaded Outlets
Caroflow 45-degree Threaded outlets are available in three sizes; 50mm, 75mm and 100mm. Each threaded outlet comes with a body (with thread), clamping ring and grating assembly (domical or flat). The outlets are female threaded to BS21:1985.
90 Degree Spigot Outlets
Caroflow 90-degree Spigot outlets are available in three sizes; 50mm, 75mm and 100mm. Each spigot outlet comes with a body, clamping ring and grating assembly (domical or flat).
90 Degree Threaded Outlets
Caroflow 90-degree Threaded outlets are available in four sizes; 50mm, 75mm, 100mm and 150mm. Each threaded outlet comes with a body (with thread), clamping ring and grating assembly (domical or flat). The outlets are female threaded to BS21:1985.
Balcony Outlets
Available in three spigot sizes; 50mm, 75mm and 100mm. Caroflow balcony spigot outlets are designed to allow the unit to be installed against a wall/upstand and the grating, which can be cut on site or prior to delivery, will allow various sizes of pipework to drain into the outlet from upper levels to give a continuous drainage line from top to bottom storey.
Kompact Balcony Roof Outlets
Offering all the benefits of the standard Balcony Outlets, the Caroflow Kompact Balcony outlet is sized to allow easier, less ‘destructive’, installation in refurbishment as well as new Balcony installations. CAROFLOW Kompact Balcony Outlets are available in 50mm and 75mm spigot sizes.
Two Way Outlets
Available in 50mm, 75mm, 100mm and 150mm spigot sizes, Caroflow Two-Way Threaded roof outlets are designed for use at the intersection of horizontal and vertical surfaces, i.e. a balcony and parapet wall, and can be used to drain off vertically or horizontally with the aid of the appropriate Caroflow Threaded Adaptor.
50mm Mini Two Way Outlets
Available in 50mm spigot sizes, Caroflow Mini Two-Way Threaded roof outlets are designed for use at the intersection of horizontal and vertical surfaces, i.e. a balcony and parapet wall, and can be used to drain off vertically or horizontally with the aid of the appropriate Caroflow Threaded Adaptor.
Gulley Outlets
Caroflow Gulley outlets are designed for use in narrow width drainage channels, within which larger outlets would not be suitable. Caroflow Gulley Outlets are available in 75mm and 100mm spigot sizes.

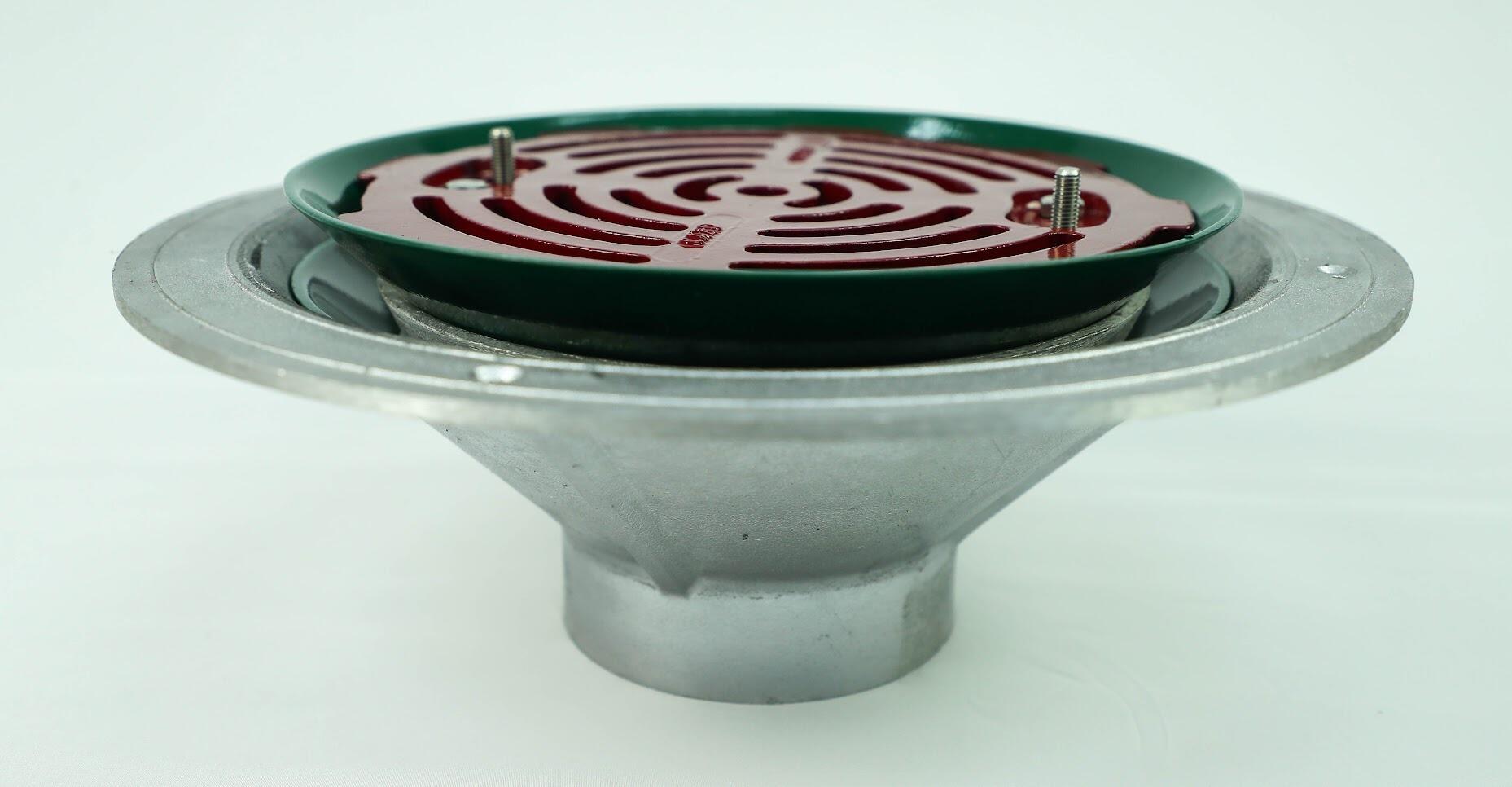

Car Park Outlets
Caroflow Car Park outlets have been designed to cope with two different installation requirements with the ‘Standard’ version allowing for 1 tonne loadings, whilst we offer an alternative ‘Heavy Duty’ solution, which can withstand 25 tonne loadings.
Overflow Outlets
Due to the fact that some roof areas are not subject to the best of maintenance regimes, especially when they are completely hidden from view, there are occasions when blockage of the roof outlets can cause a potentially disastrous build-up of water. The Caroflow Overflow Unit is designed to alleviate this problem by sealing the outlet so that it will only come into operation when a build-up occurs.
Extension Rings
The Caroflow “Easitrim” Extension Ring has been designed for use where a single level drainage “upside-down” warm roof system is specified.

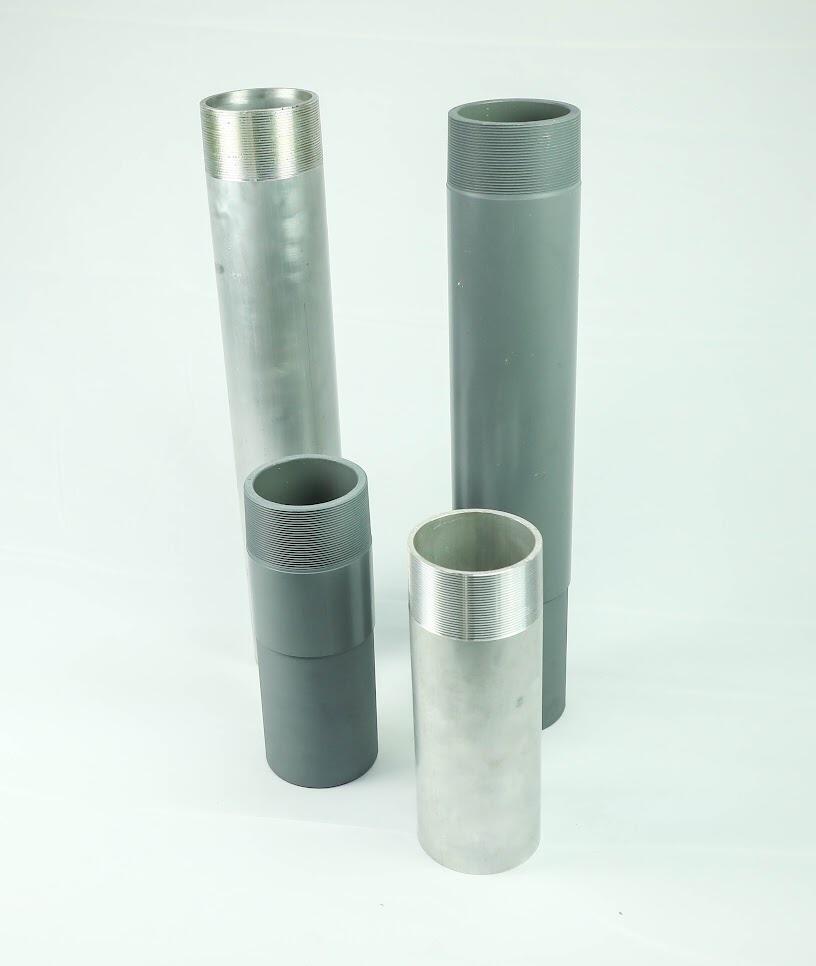

Threaded Adaptors
Caroflow Threaded Adaptors are manufactured in ABS Plastic or Aluminium for connection into any Caroflow threaded connection outlet (ie. Vertical Threaded, Two-Way Outlet etc.).
